Model 700 | Universal Electric Motors


700-angle

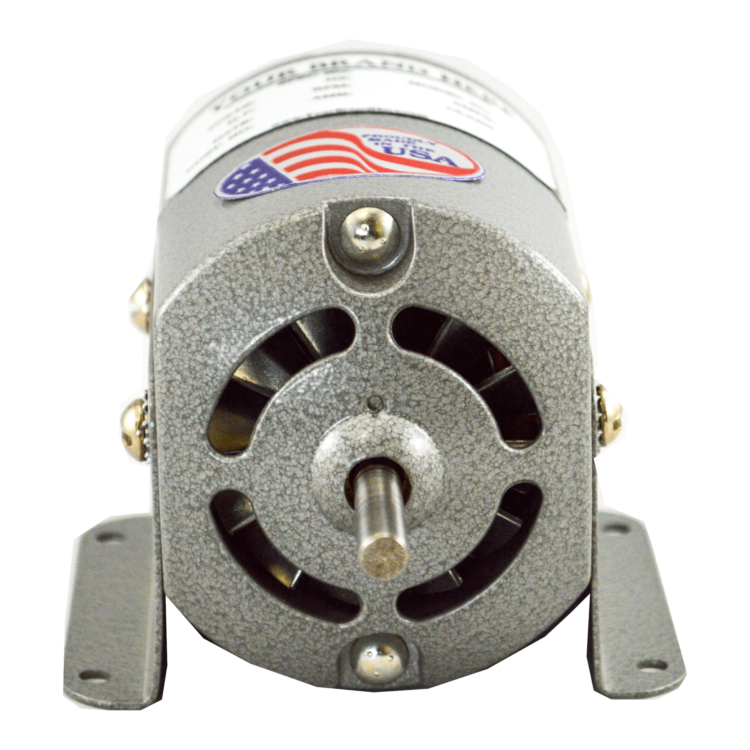

700-front

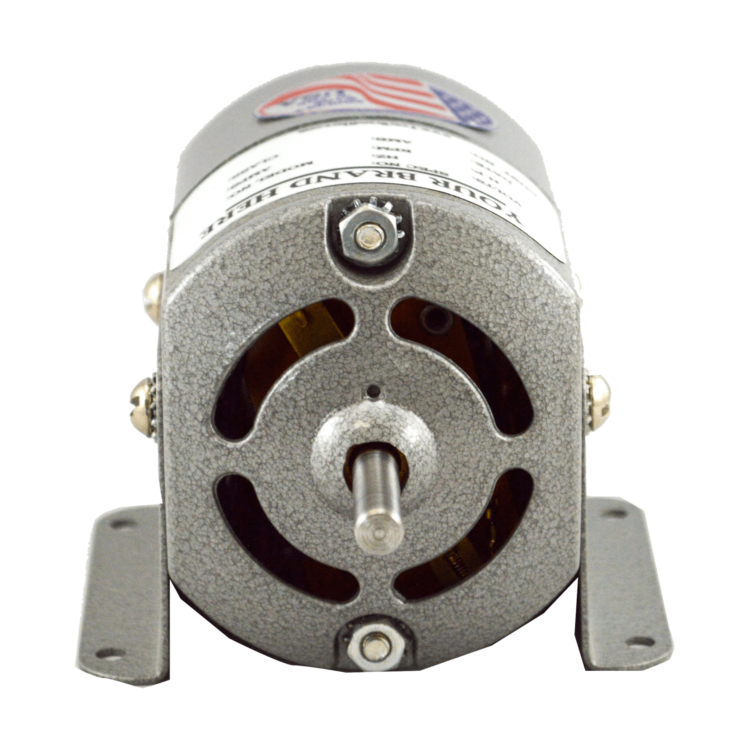

700-back

Product Overview

A versatile universal motor capable of AC and DC input power, suited for multiple applications.

Quick Specs

Housings
Zinc die cast
Bearings
Ball or sleeve
Brush Structure
Internal or external
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Side or base
Rotation
C.W.,C.C.W., Reversible
Shaft Diameter
.250, .3125, .315
Shaft Extension
Single or double
Ventilation
Totally enclosed or open ventilation
Voltage
115/230 VAC 12-90 VDC (Standard)
Winding
Series or shunt
RPM
Up to 10,000
Horsepower Range
1/15 HP thru 1/7 HP

Features

  • UL approved motor
  • Class A insulation (105°C)
  • Durable silver hammer finish
  • Compact design

Options

  • Thermal protection available
  • Class F insulation available
  • Alternate shaft materials
  • Various color options

Motor Versions

R.P.M.OZ. IN.H.P.
1000013.130
750013.098
500013.065

Motor Rating* Continuous duty open ventilated

* Greater horsepower ratings are available for intermittent duty applications if the duty cycle is such that on and off periods allow the AC motor to stay within the termperature rise limit of the insulation system.

Benefits

  • Manufactured in the USA
  • UL recognized
  • Easily customized

Applications

  • Centrifuge
  • Cutting/Stripping machine for lead wire
  • Grinder for sharpening meat rendering cutter blades
  • Dental engine (power source for dentist drill)
  • Hot drink dispensing equipment
  • Hole reamer & beveler
  • Vibrating lounge chair
  • Dental amalgamator
  • Marine pump
  • Key-Cutter
  • Sold through catalog companies as general purpose and with modifications to OEM
  • Engraving machine
  • Compressor
  • Eye glass lens grinder
  • Home hobby saw/Belt sander
  • Vibrating health table
  • Freeze drying equipment
  • Gearmotor assembly
  • Rotating brush
  • Vacuum cleaner

Technical Drawings

Model 700 Drawings

Motor Performance Curves

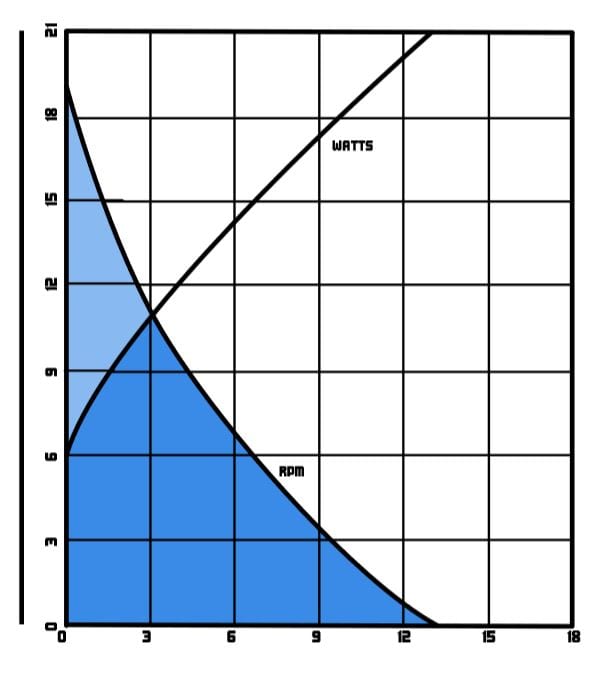

These motor performance curves are representative of Model 700 at rated HP at 10,000 RPM continuous duty.

Model 700
