Model 670 | Universal Electric Motors


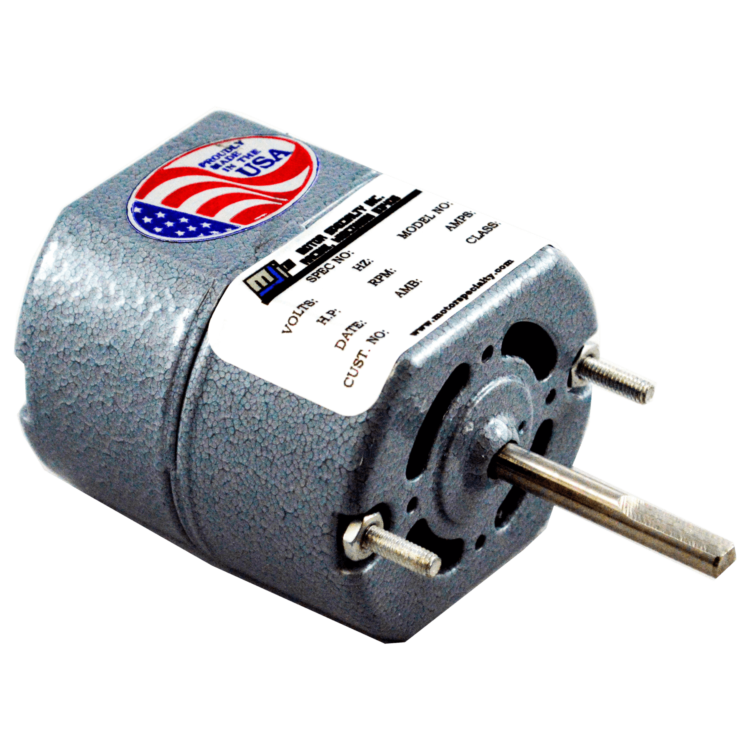

670-angle

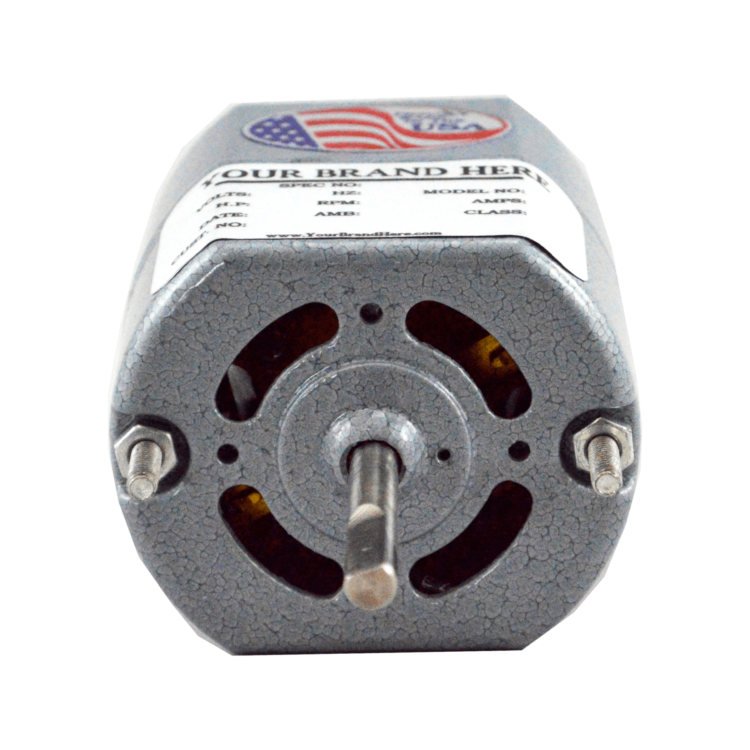

670-front

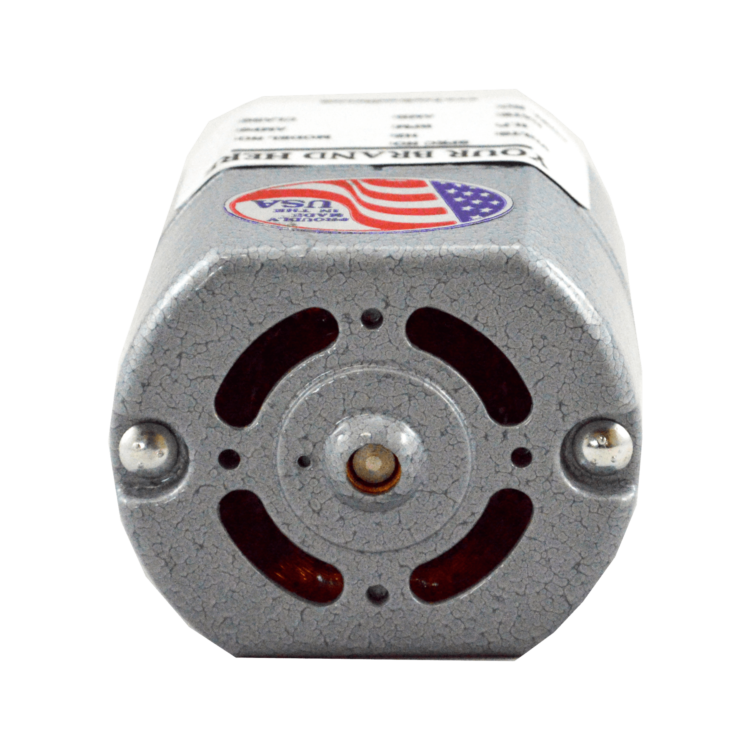

670-back

Product Overview

A versatile universal motor capable of AC and DC input power, suited for multiple applications.

Quick Specs

Housings
Zinc die cast
Bearings
Self aligning bronze
Brush Structure
Internal or external
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Face or side
Rotation
C.W., C.C.W., Reversible
Shaft Diameter
.250
Shaft Extension
Single or double
Ventilation
Totally enclosed or open ventilated
Voltage
115/230 VAC 12-90 VDC (Standard)
Winding
Series or shunt
RPM
Up to 10,000
Horsepower Range
Up to 1/15 HP

Features

  • UL approved motor
  • Class A insulation (105°C)
  • Durable silver hammer finish
  • Compact design

Options

  • Thermal protection available
  • Class F insulation available
  • Alternate shaft materials
  • Various color options

Motor Versions

R.P.M.OZ. IN.H.P.
100003.030
75003.023
50003.015

Motor Rating* Intermittent duty open ventilated

* Greater horsepower ratings are available for intermittent duty applications if the duty cycle is such that on and off periods allow the motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Manufactured in the USA
  • UL recognized
  • Easily customized

Applications

  • Cloth tape feeder for industrial sewing machine
  • Hot food/Drink dispensing equipment
  • Drapery actuator

Technical Drawings

Model 670 Drawings

Motor Performance Curves

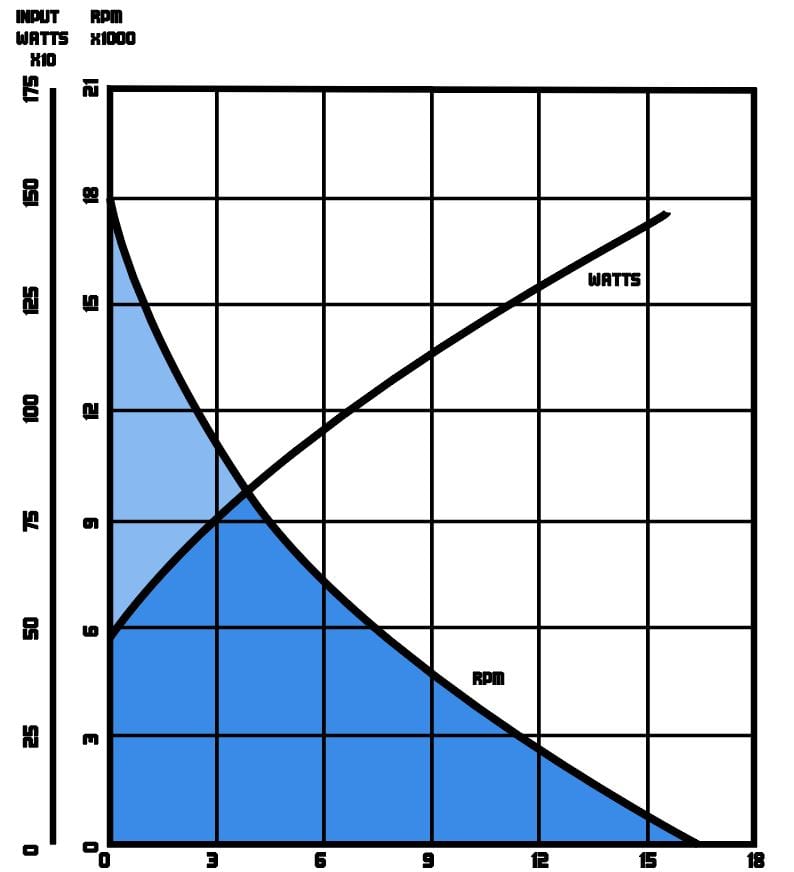

This motor performance curve is representative of Model 670 at rated HP at 10,00 RPM continuous duty.

Model 670
