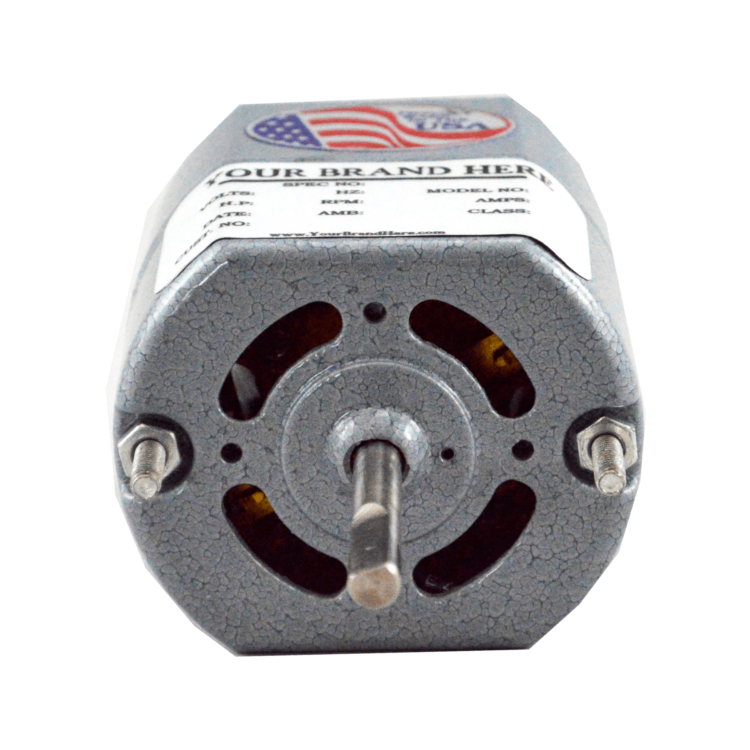

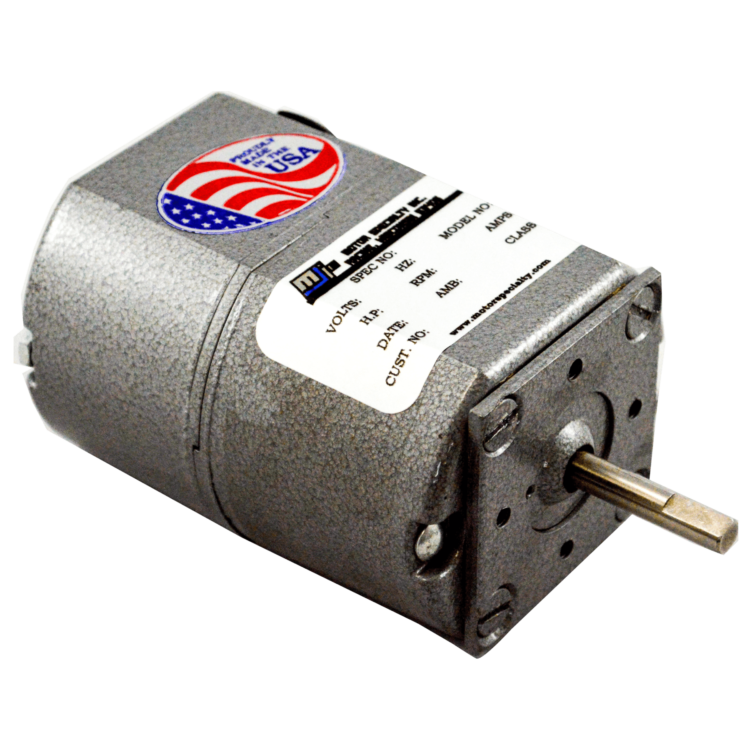

Product Overview

A versatile universal motor capable of AC and DC input power, suited for multiple applications.

Quick Specs

Housings
Zinc die cast
Bearings
Self aligning bronze or ball
Brush Structure
Internal or external
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Face or side
Rotation
C.W., C.C.W., Reversible
Shaft Diameter
.250, .3125, .315
Shaft Extension
Single or double
Ventilation
Totally enclosed or open ventilated
Voltage
115/230 VAC 12-90 VDC (Standard)
Winding
Series or shunt
RPM
Up to 10,000
Horsepower Range
1/50 HP thru 1/8 HP

Features

  • UL approved motor
  • Class A insulation (105°C)
  • Durable silver hammer finish
  • Compact design

Options

  • Base mounting available
  • Thermal protection available
  • Class F insulation available
  • Alternate shaft materials
  • Various color options

Motor Versions

 660B660C660D
R.P.M.OZ.IN.H.P.OZ.IN.H.P.OZ.IN.H.P.
100004.0408.08012.120
75004.0308.06012.090
50004.0208.04012.060

Motor Rating* Continuous duty open ventilated

* Greater horsepower ratings are available for intermittent duty applications if the duty cycle is such that on and off periods allow the motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Manufactured in the USA
  • UL recognized
  • Easily customized

Applications

  • Hot drink dispensing equipment
  • Miniature power tools, IE: Bench grinder/Polisher
  • Dental engine
  • Switchgear mechanism for industrial circuit breaker
  • Drapery actuator
  • Blower assembly

Technical Drawings

Housing Table

HSG#660-B660-C660-D
A3-3/83-5/83-7/8
B2-11/162-15/163-3/16

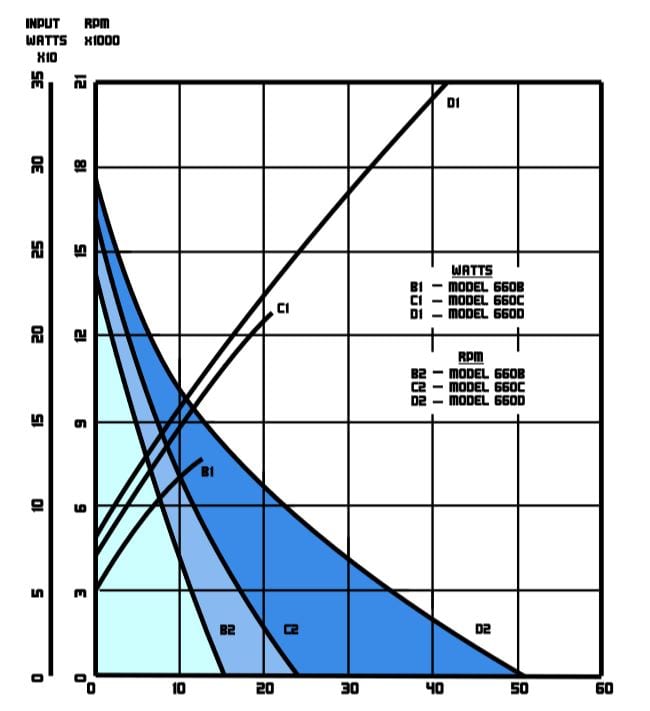

Motor Performance Curves

These motor performance curves are representative of Models 660B-660C-660D at rated HP at 10,000 RPM continuous duty.
