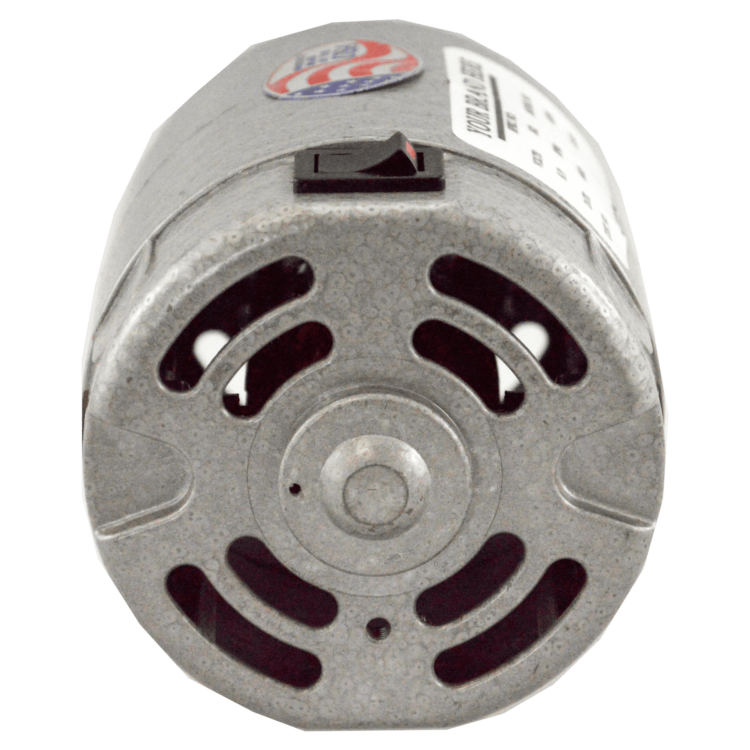

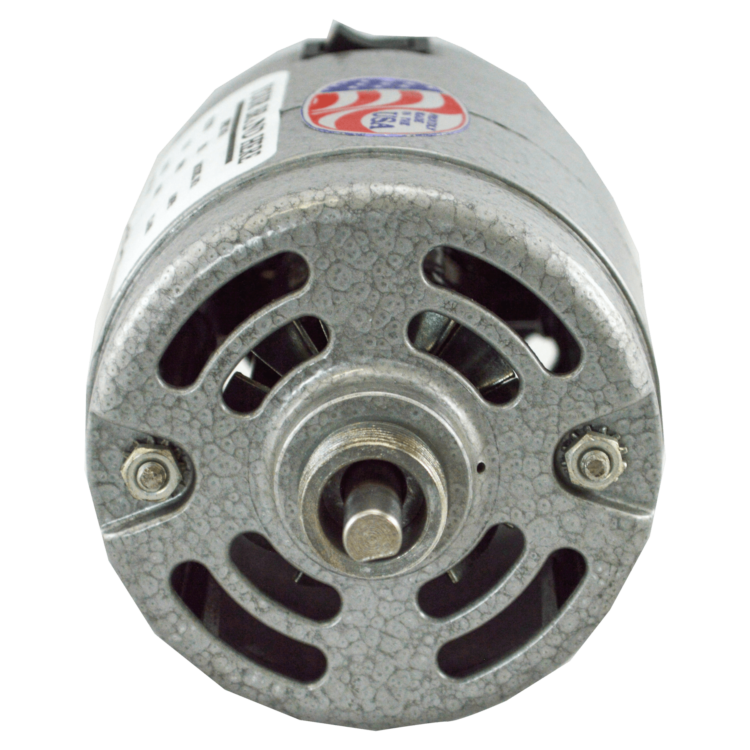

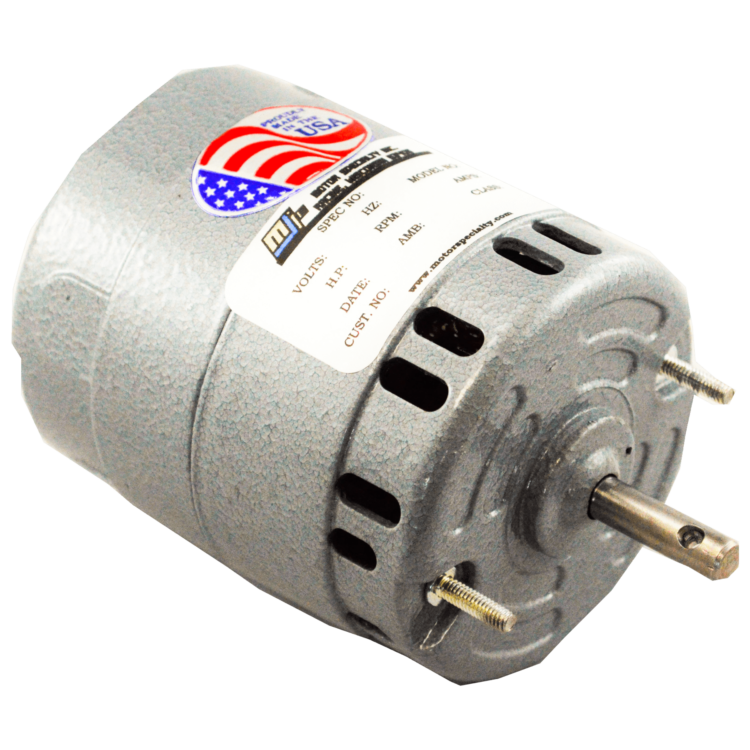

Product Overview

A versatile universal motor capable of AC and DC input power, suited for multiple applications.

Quick Specs

Housings
Zinc die cast
Bearings
Self aligning bronze or ball
Brush Structure
Internal or external
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Face
Rotation
C.W., C.C.W., Reversible
Shaft Diameter
.3125, .315
Shaft Extension
Single or double
Ventilation
Totally enclosed or open ventilated
Voltage
115/230 VAC12-90 VDC (Standard)
Winding
Series or shunt
RPM
Up to 10,000
Horsepower Range
1/15 HP thru 1/4 HP

Features

  • UL approved motor
  • Class A insulation (105°C)
  • Durable silver hammer finish
  • Compact design

Options

  • Thermal protection available
  • Class F insulation Available
  • Alternate shaft materials
  • Various color options
  • Base mounting available

Motor Versions

 2900B2900C
R.P.M.OZ.IN.H.P.OZ.IN.H.P.
1000020.0.20028.0.280
750020.0.15028.0.210
500018.0.09025.0.125

Motor Rating* Continuous duty open ventilated

* Greater horsepower ratings are available intermittent duty applications if the duty cycle is such that on and off periods allow the motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Manufactured in the USA
  • UL recognized
  • Easily customized

Applications

  • Centrifuge
  • Warm air hand dryer
  • Flexible shaft power tools for shaping/Grinding
  • Sold through catalog companies as general purpose motor and with modifications for OEM

Technical Drawings

Housing Table

Model No.XYZ
2900B12-7/323-15/16
2900C1- 1/22-23/324-7/16

Motor Performance Curves

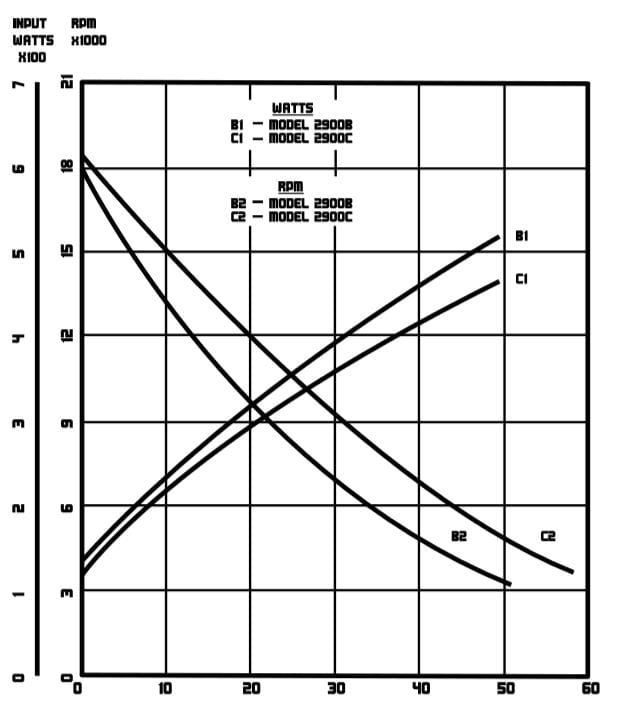

This motor performance curve is representative of Model 2900 at rated HP at 10,000 RPM continuous duty.

Model 2900
