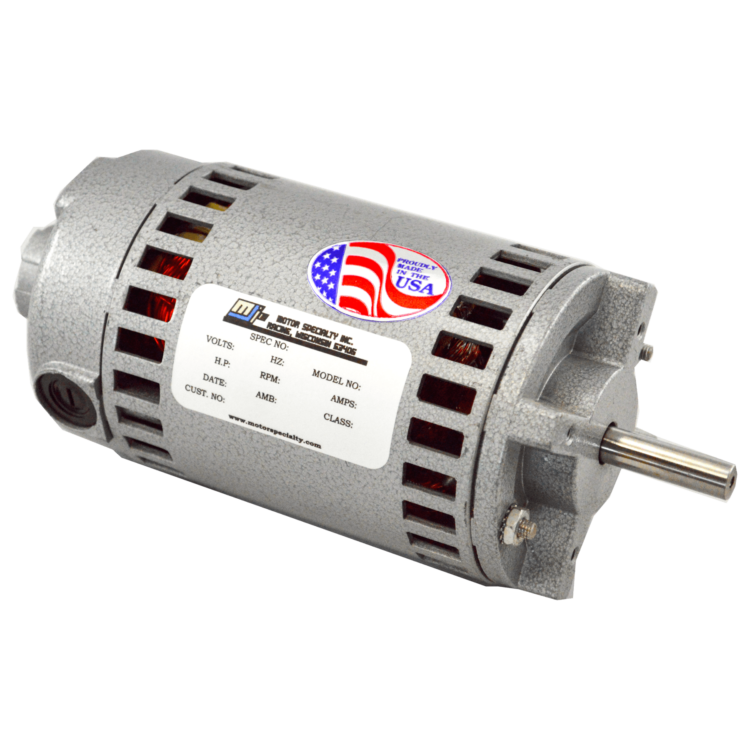

2800 Universal 115 VAC 12 VDC side
2800 Universal 115 VAC 12 VDC side

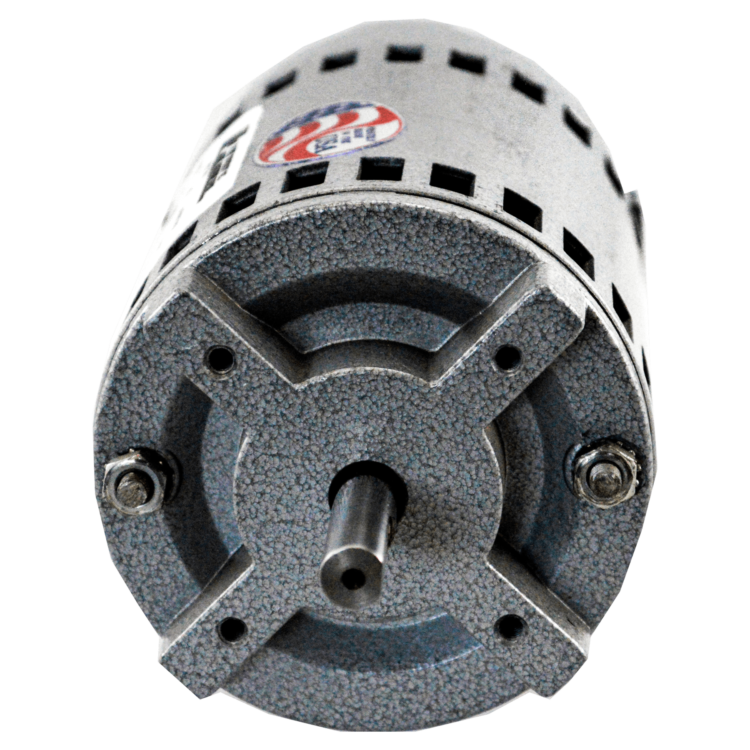

2800 Universal 115 VAC 12 VDC front

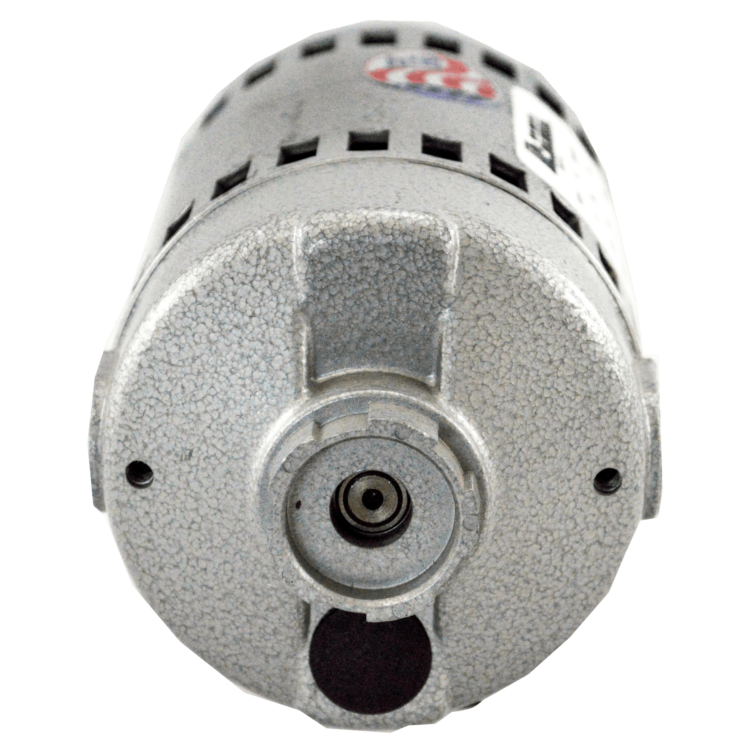

2800 Universal 115 VAC 12 VDC back

Product Overview

The 2800 is a versatile universal motor capable of 115 volt AC and 12 volt DC input power, suited for multiple applications.

  • We have a minimum order quantity of 100 units on all custom designs.
  • The model shown is representative of an OEM-specified design and is not available for direct sale to consumers.

Quick Specs

Housings
Zinc die cast ends with steel center
Bearings
Ball
Brush Structure
External
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Face
Rotation
C.W., C.C.W., Reversible
Shaft Diameter
.375, .4375
Shaft Extension
Single or double
Ventilation
Totally enclosed or open ventilated
Voltage
115/230 VAC12-90 VDC (Standard)
Winding
Series or shunt
RPM
Up to 10,000
Horsepower Range
1/4 HP thru 1/2 HP

Features

  • Class A insulation (105°C)
  • Durable silver hammer finish
  • Compact design

Options

  • Thermal protection available
  • Class F insulation available
  • Alternate shaft materials
  • Various color options
  • Base mounting available

Motor Versions

R.P.M.OZ. IN.H.P.
1000050.500
750050.375
500050.250

Motor Rating* Continuous duty open ventilated

* Greater horsepower ratings are available intermittent duty applications if the duty cycle is such that on and off periods allow the motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Manufactured in the USA
  • Easily customized

Applications

  • Automatic copier
  • Industrial sewing machine
  • Siren for U.S. Navy

Technical Drawings

Model 2800 Drawings

Motor Performance Curves

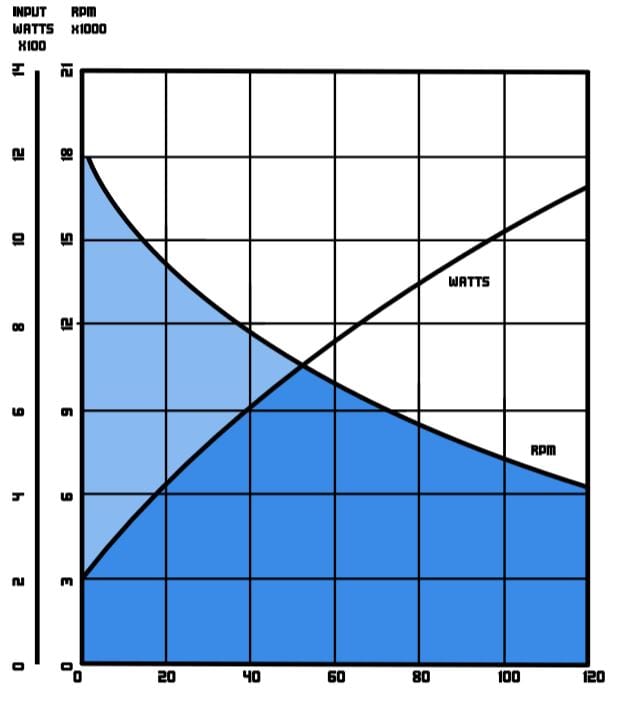

This motor performance curve is representative of Model 2800 at rated HP at 10,000 RPM continuous duty.

Model 2800 Performance Chart
