Model 2500 | Universal Electric Motors


2500 Universal 115 VAC 12 VDC side
2500 Universal 115 VAC 12 VDC front
2500 Universal 115 VAC 12 VDC back

Product Overview

The 2500 is a versatile 1 HP universal motor capable of 115 volt AC and 12 volt DC input power that is suited for multiple applications.

Quick Specs

Housings
Zinc and aluminum cast ends with steel center
Bearings
Ball
Brush Structure
External
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Face
Rotation
C.W., C.C.W., Reversible
Shaft Diameter
.375, .4375, .500
Shaft Extension
Single or double
Ventilation
Totally enclosed or open ventilated
Voltage
115/230 VAC12-90 VDC (Standard)
Winding
Series or shunt
RPM
Up to 10,000
Horsepower Range
1/2 HP thru 1 HP

Features

  • UL approved motor
  • Class A insulation (105°C)
  • Durable silver hammer finish
  • Compact design

Options

  • Thermal protection available
  • Class F insulation available
  • Alternate shaft materials
  • Various color options
  • Base mounting available

Motor Versions

 2500A2500B2500C
R.P.M.OZ.IN.H.P.OZ.IN.H.P.OZ.IN.H.P.
1000050.50075.7501001.000
750050.37575.562100.750
500050.25075.375100.500

Motor Rating* Continuous duty open ventilated

* Greater horsepower ratings are available intermittent duty applications if the duty cycle is such that on and off periods allow the motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Manufactured in the USA
  • UL recognized
  • Easily customized

Applications

  • Sold through catalog companies as general purpose motor and with modifications to OEM
  • Soft serve ice cream mixing machine
  • Feeder for welding machine

Technical Drawings

Model 2500 Drawings

Motor Performance Curves

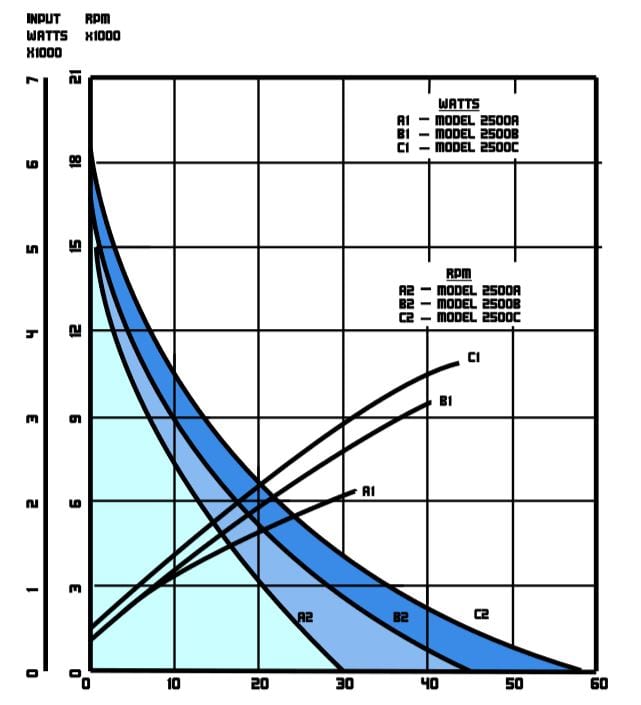

These motor performance curves are representative mf Models 2500 A-B-C at rated HP 10,000 RPM continuous duty.

Model 2500
