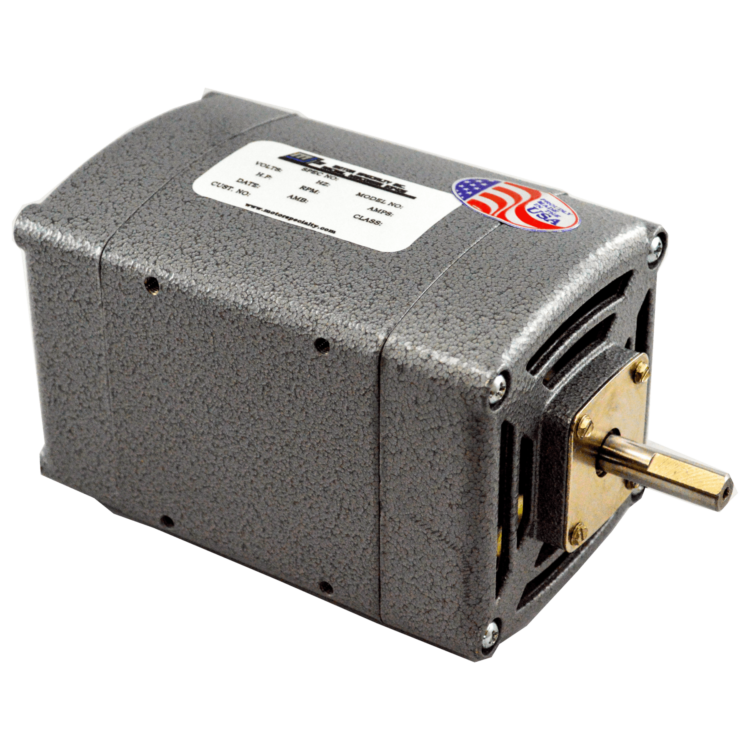

1000-angle

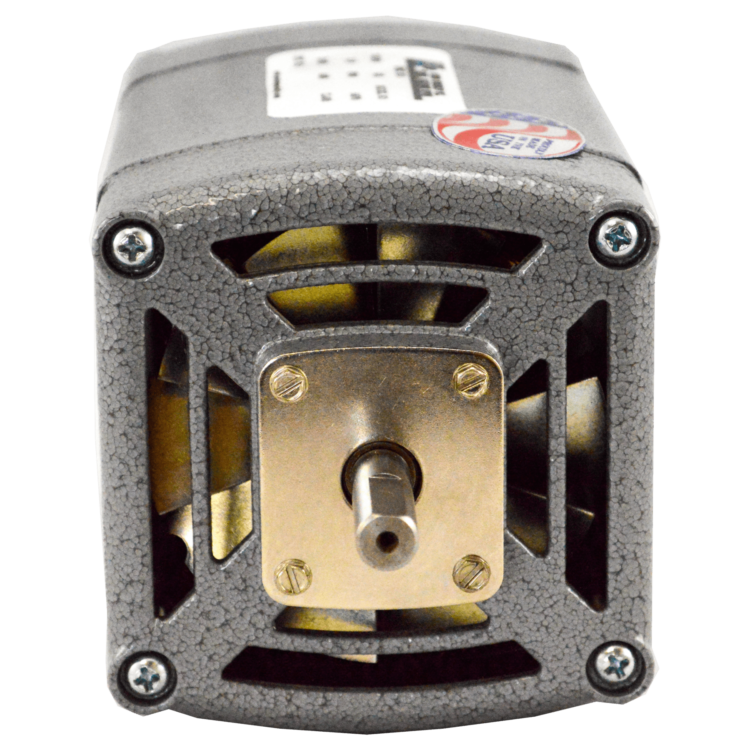

1000-front

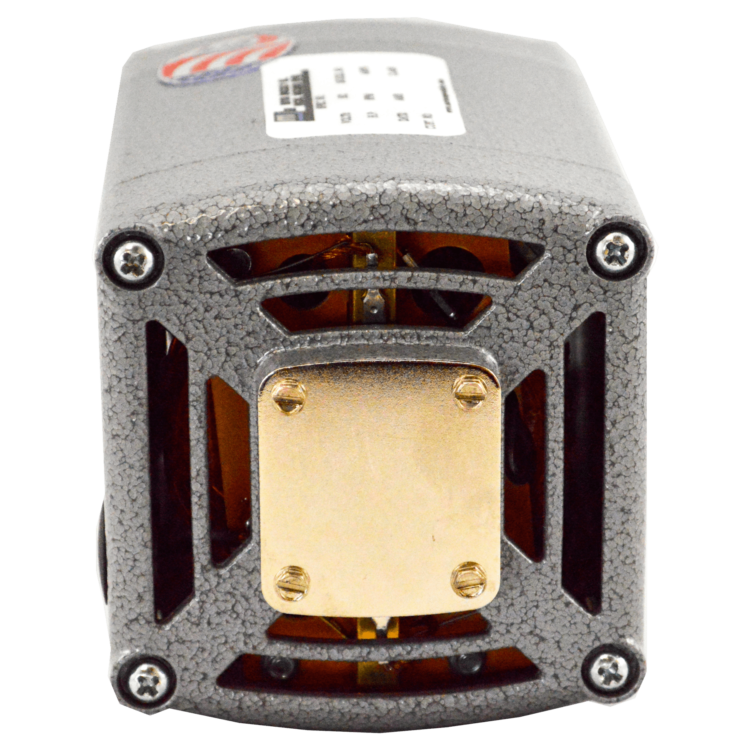

1000-back

Product Overview

A versatile universal motor capable of AC and DC input power, suited for multiple applications.

Quick Specs

Housings
Zinc die cast
Bearings
Ball
Brush Structure
Internal
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Side or face
Rotation
C.W., C.C.W., Reversible
Shaft Diameter
.375, .4375
Shaft Extension
Single or double
Ventilation
Totally enclosed or open ventilated
Voltage
115/230 VAC12-90 VDC (Standard)
Winding
Series or shunt
RPM
Up to 10,000
Horsepower Range
1/4 HP thru 1/2 HP

Features

  • UL approved motor
  • Class A insulation (105°C)
  • Durable silver hammer finish
  • Compact design

Options

  • Thermal protection available
  • Class F insulation available
  • Alternate shaft materials
  • Various color options

Motor Versions

R.P.M.OZ. IN.H.P.
1000050.500
750050.375
500050.250

Motor Rating* Continuous duty open ventilated

* Greater horsepower ratings are available for intermittent duty applications if the duty cycle is such that on and off periods allow the motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Manufactured in the USA
  • UL recognized
  • Easily customized

Applications

  • Abrasive wheel cutoff machine
  • Pump for transferring liquids from Barrels/Drums
  • Sold through catalogs as general purpose motor & with modifications to OEM
  • Business forms
  • Electrically elevated hospital tables
  • Gearmotor assembly

Technical Drawings

Motor Performance Curves

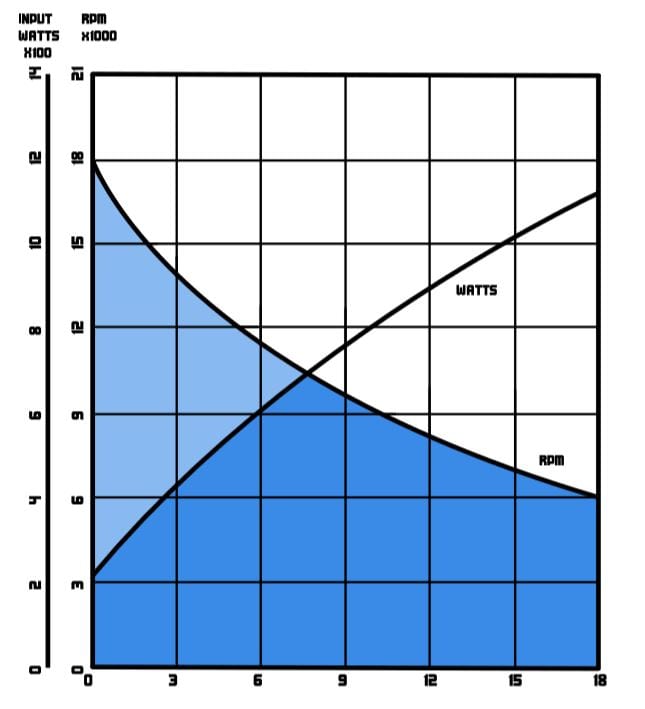

This motor performance curve is representative of Model 1000 at rated HP at 10,000 RPM continuous duty.

Model 1000
