Model 2000/2010 | Permanent Magnet Motors


2000-2010-group
2000-2010-front
2000-2010-back-2
2000-2010-front-2
2000-2010-back

Product Overview

A versatile permanent magnet DC motor (PMDC) capable of AC (with available rectifier) and DC input power, this 12v DC permanent magnet motor is suited for multiple applications.

Quick Specs

Housings
Zinc and aluminum ends with steel center
Bearings
Self aligning bronze or ball
Brush Structure
External
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Face
Rotation
C.W., C.C.W., Reversible
Shaft Diameter
.375, .4375, .500
Shaft Extension
Single or double
Ventilation
Totally enclosed
Voltage
12-90 & 180 VDC
Winding
Ceramic magnet
RPM
Up to 5,000
Horsepower Range
1/20 HP thru 1/4 HP

Features

  • UL approved motor
  • Class A insulation (105°C)
  • Durable silver hammer finish
  • Geared models available
  • Linear torque curve

Options

  • Thermal protection available
  • Class F insulation available
  • Alternate shaft materials
  • Various color options
  • Base mounting available

Motor Versions

 2000A2000B2000C
R.P.M.OZ.IN.H.P.OZ.IN.H.P.OZ.IN.H.P.
500012.06228.14240.200
345016.05636.12554.187
172529.05058.10097.167

Motor Rating* Continuous duty totally enclosed

* Greater horsepower ratings are available intermittent duty applications if the duty cycle is such that on and off periods allow the motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Linear torque curve
  • Longer life
  • Lower operating speeds
  • Ideal for use with gear reducers

Applications

  • Floor cleaning machine
  • Laboratory shaker table
  • Soft serve ice cream dispensing equipment
  • Automatic door opener
  • Business forms machines
  • Scroll saw

Technical Drawings

Model 2000 Drawings Model 2010 Drawings

Motor Performance Curves

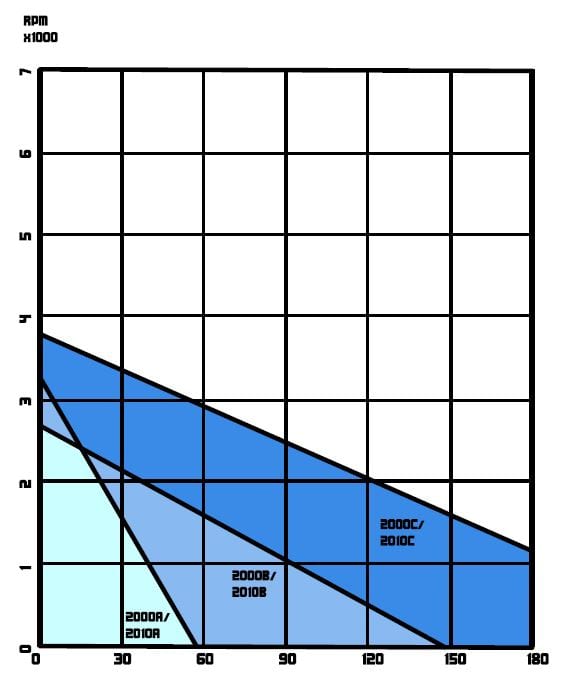

These motor performance curves are representative of Models 2000A/2010A-2000B/2010B-2000C/2010C at rated HP at 1,725 RPM continuous duty.

Model 2000/2010
