Model 3100 GP | Gear Motors

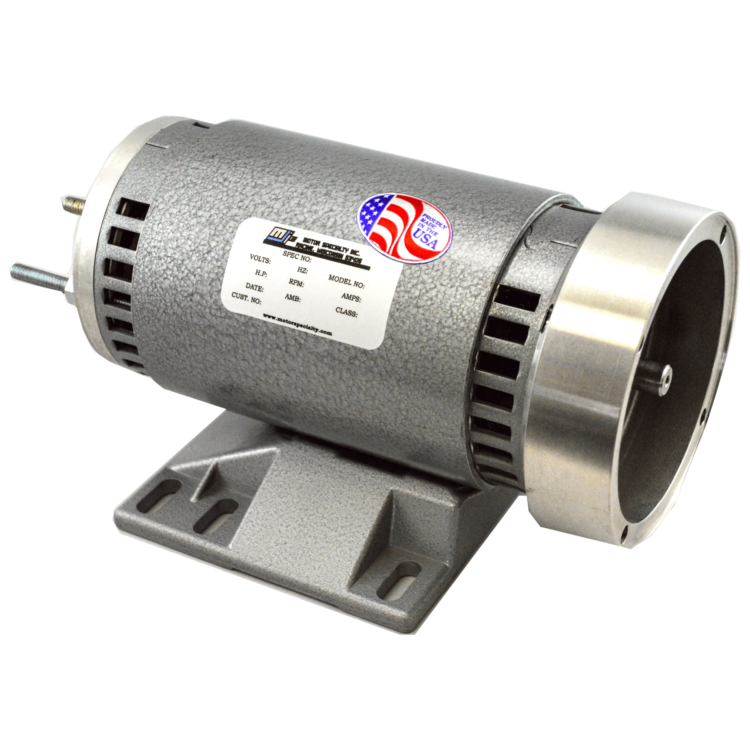

3100-angle

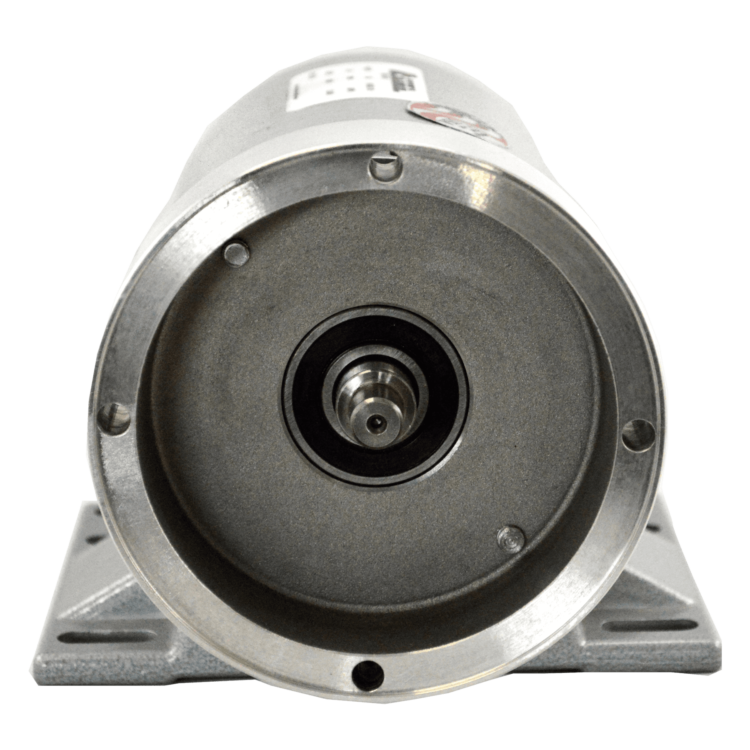

3100-front

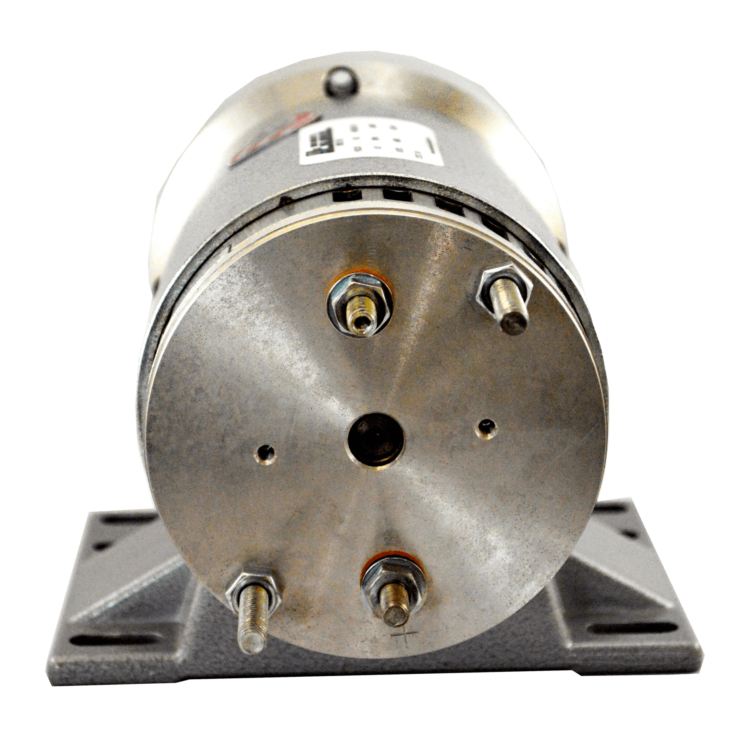

3100-back

Product Overview

Featuring a versatile permanent magnet DC motor (PMDC) capable of AC (with available rectifier) and DC input power, suited for specialized applications with available multiple gear reductions and configurations.

Quick Specs

Housings
Zinc or aluminum end bells with steel center section
Bearings
Ball
Brush Structure
External or Internal
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Face / Base
Rotation
C.W., C.C.W., Reversible
Shaft Diameter
.375, .4375, .500
Shaft Extension
Single or Double
Ventilation
Totally enclosed or open ventilated
Voltage
12-90 & 180 VDC (For other voltages consult factory)
Winding
Ceramic magnet
RPM
Up to 10,000
Horsepower Range
1/8 thru 1.5 HP

Features

  • UL approved motor
  • Class A insulation (105°C)
  • Durable silver hammer finish
  • 10:1 thru 50:1 Gear ratios available
  • Linear torque curve

Options

  • Thermal protection available
  • Class F insulation available
  • Alternate shaft materials
  • Various color options
  • Multiple cord plug end configurations available
  • Right angle, parallel shaft or inline gearbox
  • 12 and 24 VDC terminal post connection
  • Cast iron or aluminum gearbox

Motor Versions

 Open VentilatedTotally Enclosed
R.P.M.OZ.IN.H.P.OZ.IN.H.P.
100001381.368
75001611.203
5000152.73750.250
3600148.52964.228
2400142.33975.179
1800146.26070.124
1200153.18187.103
900142.12689.079

Motor Rating* Continuous duty open ventilated power supply- Single phase full wave rectified

* Greater horsepower ratings are available for intermittent duty applications if the duty cycle is such that on and off periods allow the motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Versatile compact gearmotor
  • High starting torque
  • 2,000+ hour life
  • Lower operating speeds
  • Quieter operation

Applications

  • Capstan hoist/Winch
  • Electric lawn mower
  • Outboard motor/Trim motor
  • Coffee bean grinder

Technical Drawings

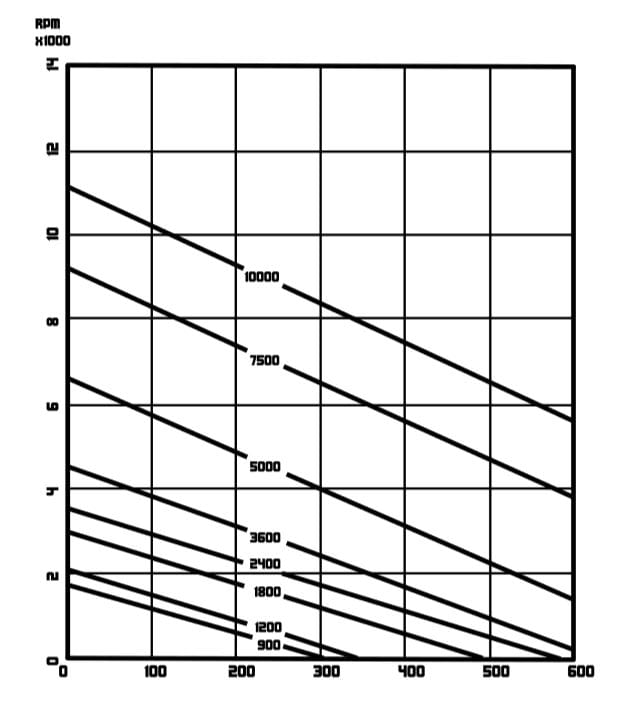

Motor Performance Curves

These motor performance curves are representative of the open ventilated, continuous duty, class “A” temperature classification ratings as shown in the table on the reverse side of this bulletin.

Model 3100 GP
