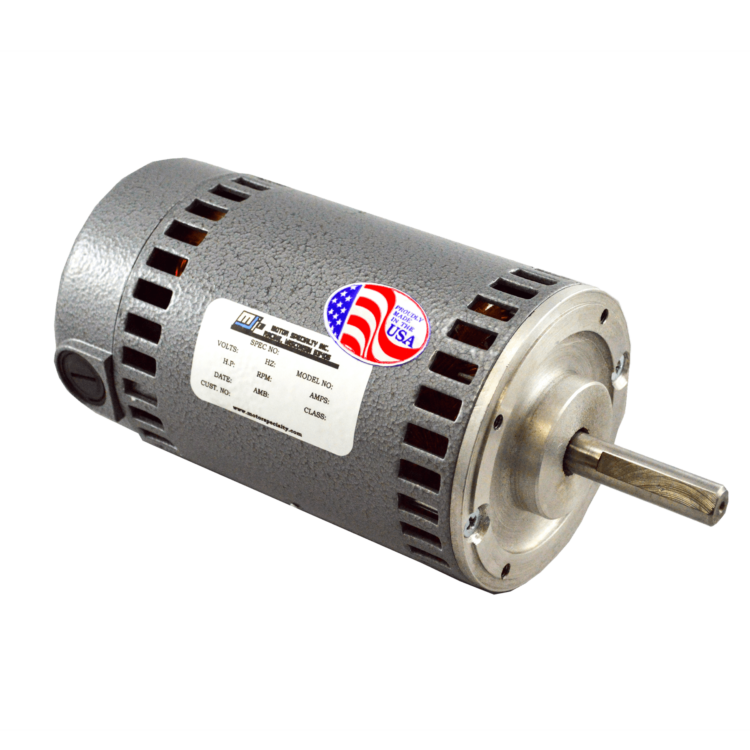

Motor-Specialty-2500-angle

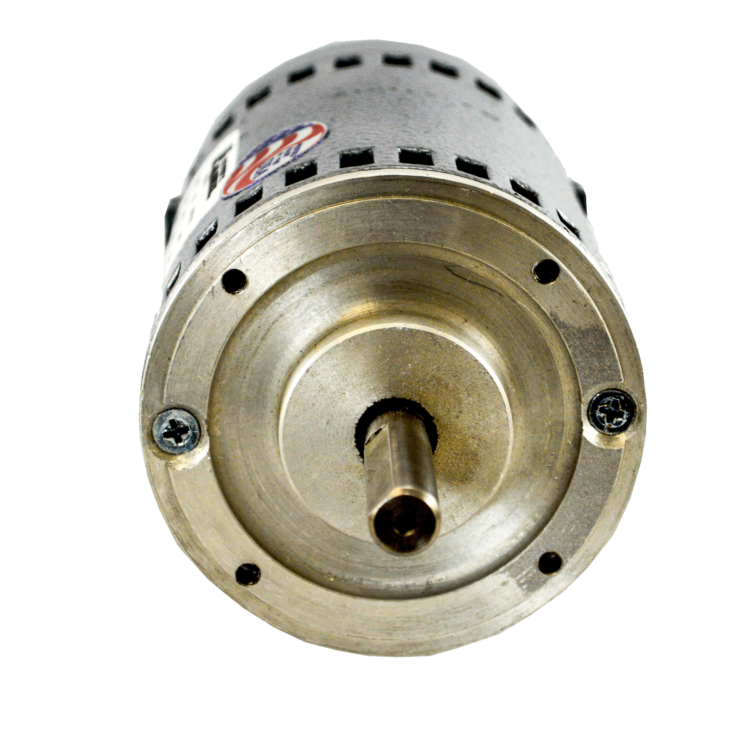

2500-front

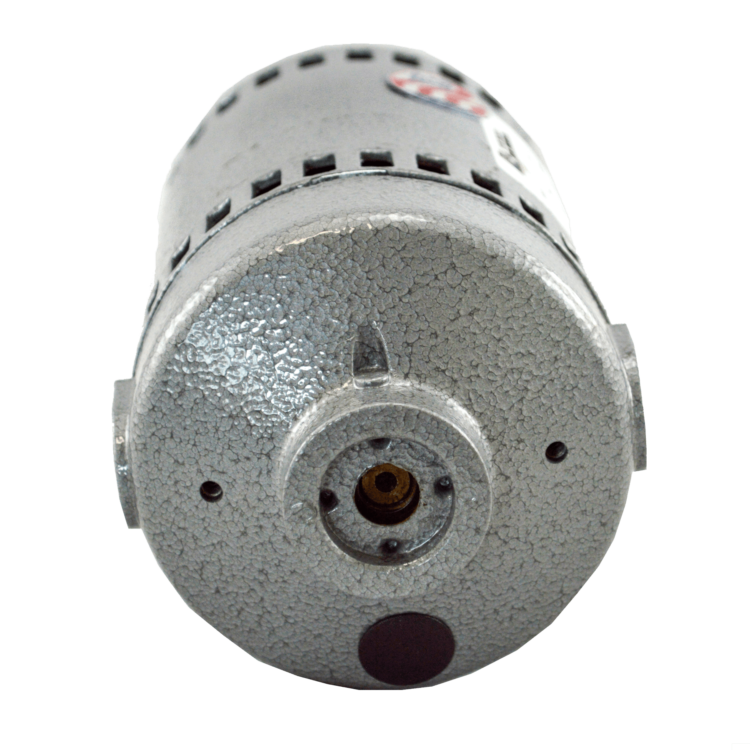

2500-back

Product Overview

Featuring a versatile universal motor capable of AC and DC input power, this 1/2 hp gear motor is suited for specialized applications with available multiple gear reductions and configurations.

Quick Specs

Housings
Zinc or aluminum end bells with steel center section
Bearings
Ball
Brush Structure
External
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Face
Rotation
C.W., C.C.W. Reversible
Shaft Diameter
.375, .4375, .500
Shaft Extension
Single or double
Ventilation
Totally enclosed or open ventilated
Voltage
115/230 VAC 12-90 VDC
Winding
Series or shunt
RPM
Up to 10,000
Horsepower Range
1/2 HP thru 1 HP

Features

  • UL approved motor
  • Class A insulation (105°C)
  • Durable silver hammer finish
  • 10:1 thru 50:1 gear ratios available

Options

  • Thermal Protection Available
  • Class F Insulation Available
  • Alternate Shaft Materials
  • Various Color Options
  • Multiple Cord Plug End Configurations Available
  • Right angle, parallel shaft or inline gearbox

Motor Versions

 2500 A.2500 B.2500 C.
R.P.M.OZ.IN.H.P.OZ.IN.H.P.OZ.IN.H.P.
1000050.50075.7501001.000
750050.37575.562100.750
500050.25075.375100.500

Motor Rating* Continuous duty open ventilated

* Greater horsepower ratings are available for intermittent duty applications if the duty cycle is such that on and off periods allow the motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Versatile compact gearmotor
  • High starting torque
  • Threaded gearbox output option for flexible shaft tools

Applications

  • Sold through catalog companies as general purpose motor and with modifications to OEM
  • Hot/Cold drink dispensing machine
  • Wood boring machine
  • Feeder for welding machine

Technical Drawings

Model 2500 Drawings

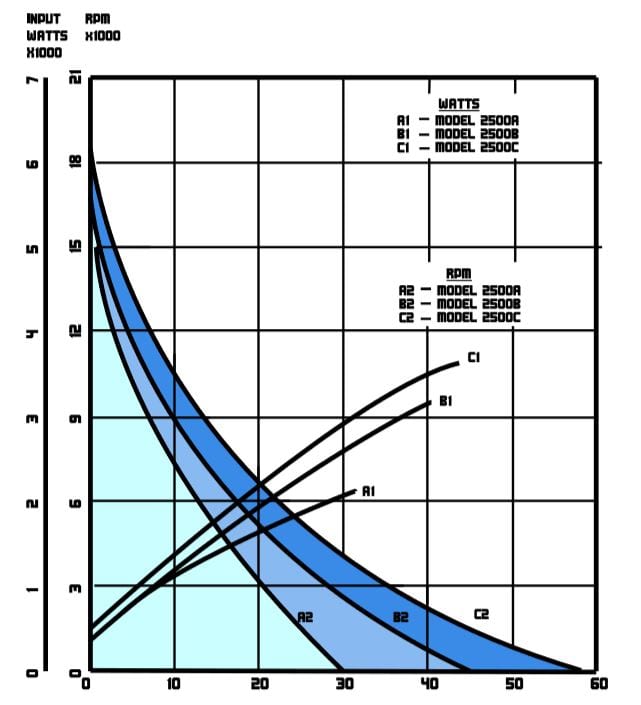

Motor Performance Curves

These motor performance curves are representative of models 2500 A-B-C at rated 10,000 RPM continuous duty.
