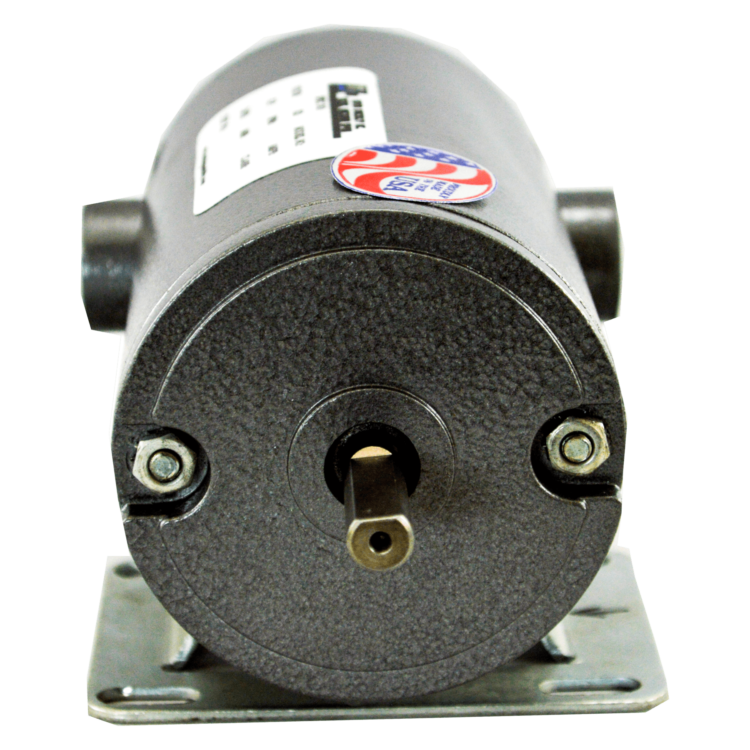

2000-2010-front

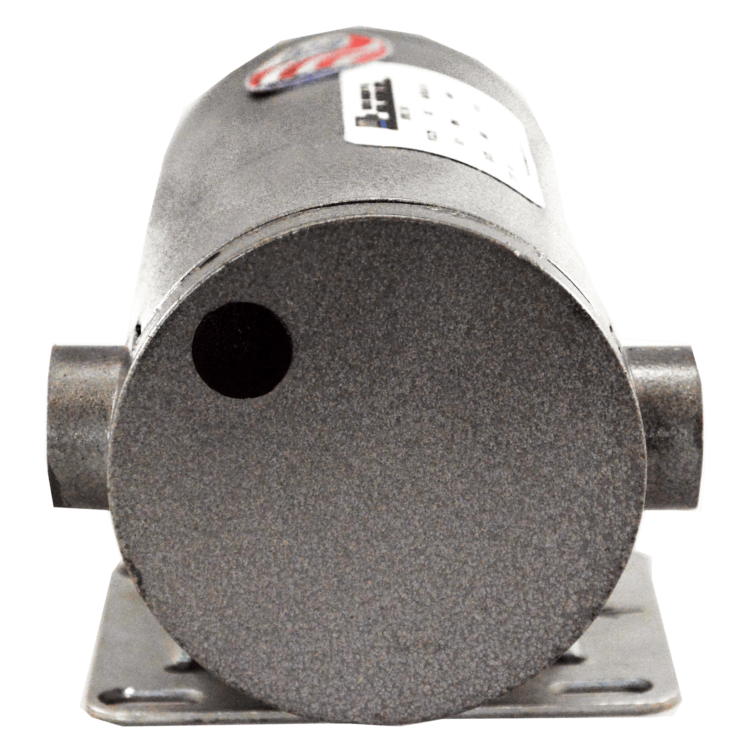

2000-2010-back

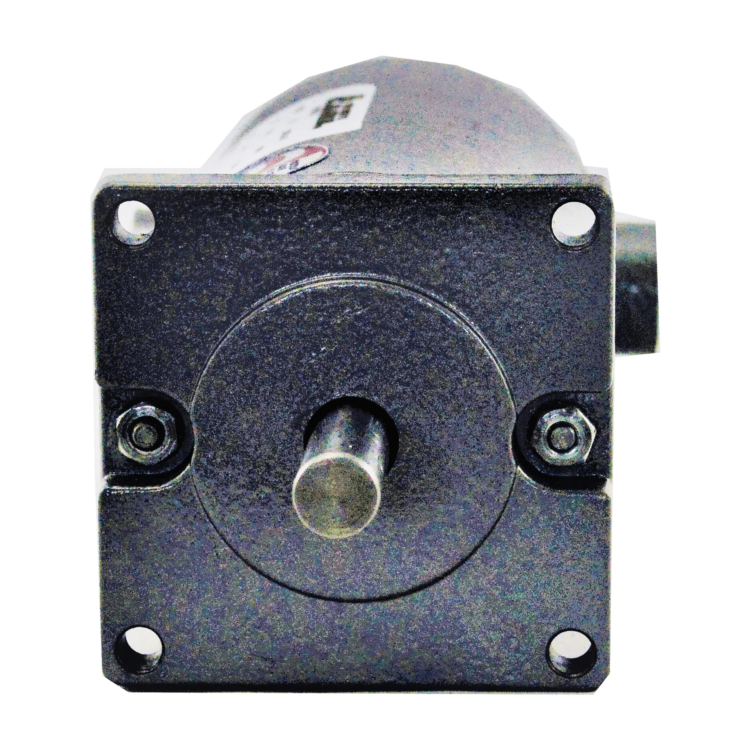

2000-2010-front-2

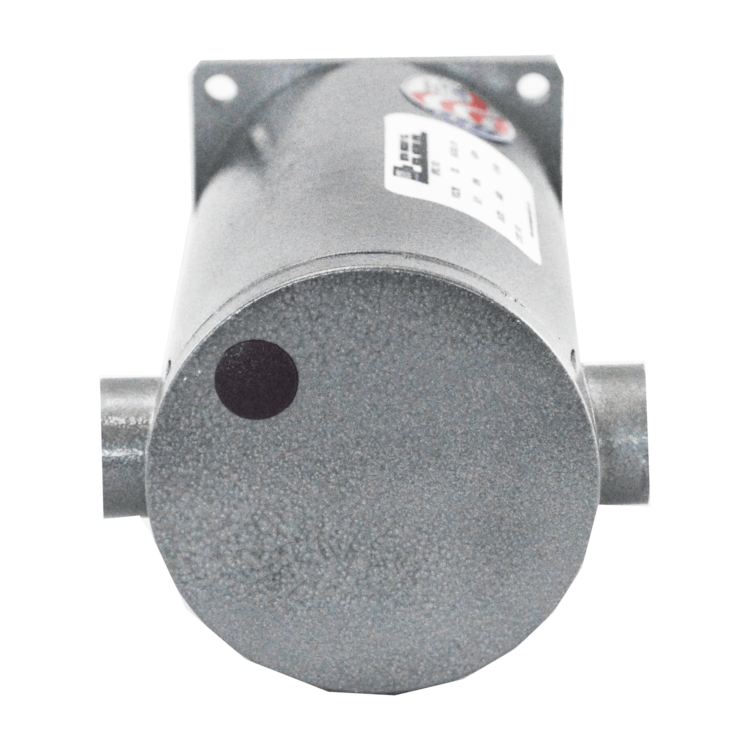

2000-2010-back-2

Product Overview

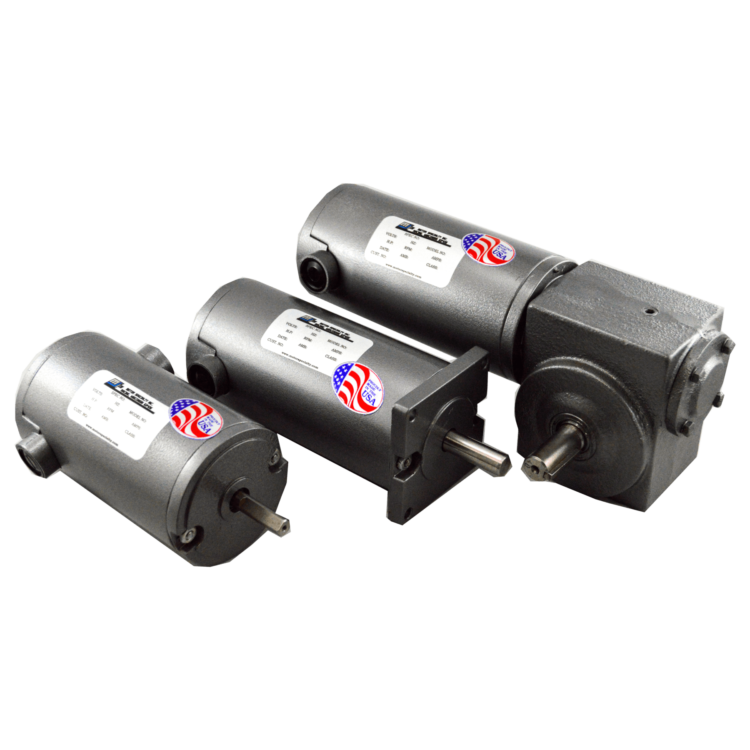

Featuring a versatile permanent magnet DC motor (PMDC) capable of AC (With Available Rectifier) and DC input power, these 12 volt gear drive motors are suited for specialized applications with available multiple gear reductions and configurations.

Quick Specs

Housings
Zinc or aluminum end bells with steel center section
Bearings
Ball
Brush Structure
External
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Face
Rotation
C.W., C.C.W., Reversible
Shaft Diameter
.375, .4375, .500
Shaft Extension
Single or Double
Ventilation
Totally enclosed
Voltage
12-90 & 180 VDC (For other voltages consult factory)
Winding
Ceramic magnet
RPM
Up to 10,000
Horsepower Range
1/20 HP thru 1/4 HP

Features

  • UL approved motor
  • Class A insulation (105°C)
  • Durable silver hammer finish
  • 10:1 thru 50:1 Gear ratios available
  • Linear torque curve

Options

  • Thermal protection available
  • Class F insulation available
  • Alternate shaft materials
  • Various color options
  • Multiple cord plug end configurations available
  • Right angle, parallel shaft or inline gearbox
  • 12 and 24 VDC terminal post connection
  • Cast iron or aluminum gearbox

Motor Versions

 2000A2000B2000C
R.P.M.OZ.IN.H.P.OZ.IN.H.P.OZ.IN.H.P.
500012.06228.14240.200
345016.05636.12554.187
172529.05058.10097.167

Motor Rating* Continuous duty totally enclosed.

* Greater horsepower ratings are available for intermittent duty applications if the duty cycle is such that on and off periods allow the motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Versatile compact gearmotor
  • High starting torque
  • 2,000+ hour life
  • Lower operating speeds
  • Quieter operation

Applications

  • Floor cleaning machine
  • Laboratory shaker table
  • Soft serve ice cream dispensing equipment
  • Automatic door opener
  • Business forms machines
  • Scroll saw
  • Capstan hoist/Winch
  • Electric lawn mower
  • Outboard motor/Trim motor
  • Coffee bean grinder

Technical Drawings

Model 2000 Drawings Model 2010 Drawings

Motor Performance Curves

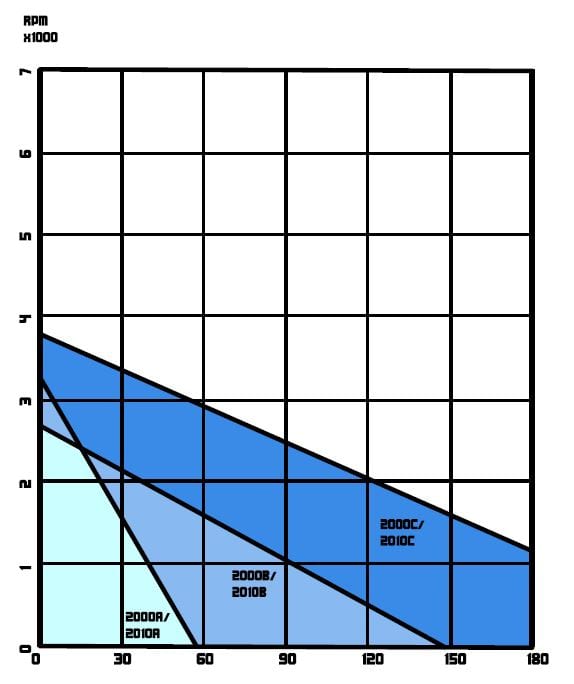

These motor performance curves are representative of Models 2000/2010A – 2000/2010B – 2000/2010C at rated HP at 1725 RPM continuous duty.
